DH-IPC-EBW5641-AS

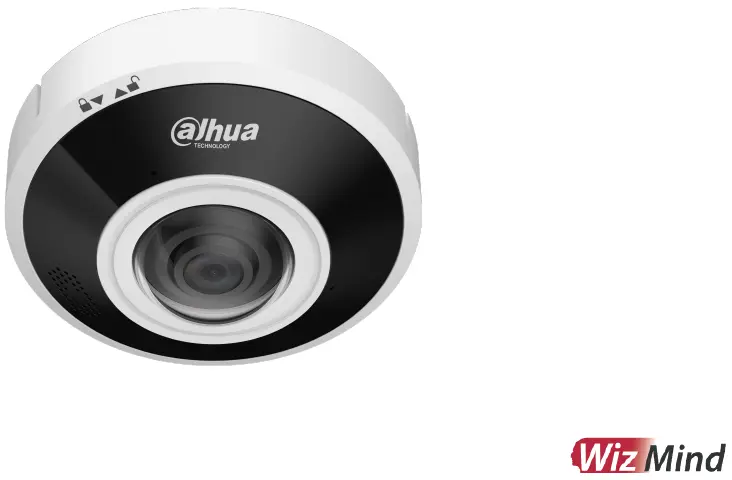

6MP IR Fisheye WizMind Network Camera
- 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 6 MP (2560 × 2560)@25/30 fps.
- 360° fisheye monitoring covers all the corners without any blind zone.
- Supports fisheye front-dewarp and back-dewarp.
- Supports split screen for 2 and 4 windows.
- Built-in IR LED, and the max. illumination distance is 15 m.
- ROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
- Built-in speaker and dual Mic. Supports two-way talk.
- 12 VDC/ PoE(802.3af) power supply.
- IP67 and IK10 protection.
Specifications
| Kamera | |
|---|---|
| Produsent | Dahua |
| Kameratype | Fisheye |
| Oppløsning | 6MP |
| Maks IR lengde | 15m |
| Bildebrikke | 1/2.5" |
| Lux | 0.006 |
| WDR | 120 dB |
| Linse | |
|---|---|
| Optikk: Fast / Variabel | Fast |
| Brennvidde | 1.68mm |
| F-verdi | F2.0 |
| Størrelse / Miljø | |
|---|---|
| Miljø | Utendørs |
| WDR Range | 120-129 |
| Vandalsikring | IK10 |
| IP klassifisering | IP67 |
| I/O | |
|---|---|
| Alarm I/O | Ja |
| Nettverk | |
|---|---|
| PoE Standard | ePoE |
| Lagring | |
|---|---|
| SD kort | Micro SD |
| Others | |
|---|---|
| Belysning | IR LED |
