BK30/30

Extender | VGA KVM Extender

https://bestilling.byggekamera.no/web/image/product.template/4781/image_1920?unique=ee2ac23

Not Available For Sale

Denne kombinasjonen eksisterer ikke.

Kontakt oss

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Del

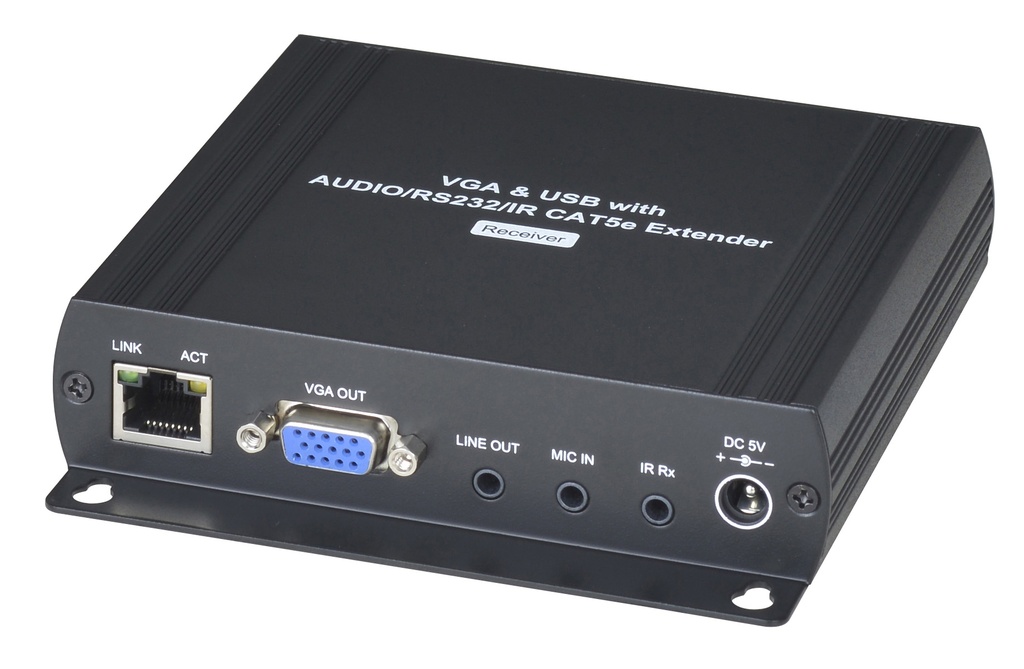

  • VKM04-2

  • KVM CAT5 e Extender

  • VGA & USB with Stereo Audio, RS232 CAT5 e E xtender with Loop Out


  • VKM04 can extend signals of VGA, USB, Stereo Audio, RS232, and IR all over one cost-effective CAT5e cable which makes installation easily and neatly.
  • It provides superior video quality up to 1920 x 1200 resolutions and VGA Loop Out for local display
  • The maximum transmission distance is up to 140M over CAT6 cable.
  • It is perfect for interactive digital signage, home network integration, industrial control, hospital, class room, security application.
  • Extend s VGA, stereo audio, RS232, IR and USB signals over one CAT5 e /CAT6
  • Supports up to 1920 x 1200@60Hz.
  • Transmission distance up to 120 M over CAT5e, 140M over CAT6.
  • Transmitter unit has built in V GA Loop Out
  • Support s tereo audio extension for stereo speakers and microphone etc.
  • Support USB 2.0, USB 1.0 & USB 1.1 extension. Ex. Flash /Hard disk, keyboard, mouse etc.
  • Support F ull Duplex RS232 data communication.
  • Support IR one direction extension, IR carrier frequency: 20 60K Hz.
  • Plug and play for easy operation.
  • Optional model: SR01 signal repeater for longer distance application.
  • Optional model: IR CR01 IR receiver cable for extending distance of IR reception

Installation:
